Typical cargo candidates
Edible oils, syrups, molasses, juices, wine, glycerin and selected non-regulated industrial liquids.
Flexible bulk liquid packaging
20ft Container Flexitank Solutions
Essencia provides advanced Flexitank solutions as part of our complete liquid packaging portfolio—for compatible non-hazardous cargo from 16,000 to 24,000 L.
Efficient bulk transport

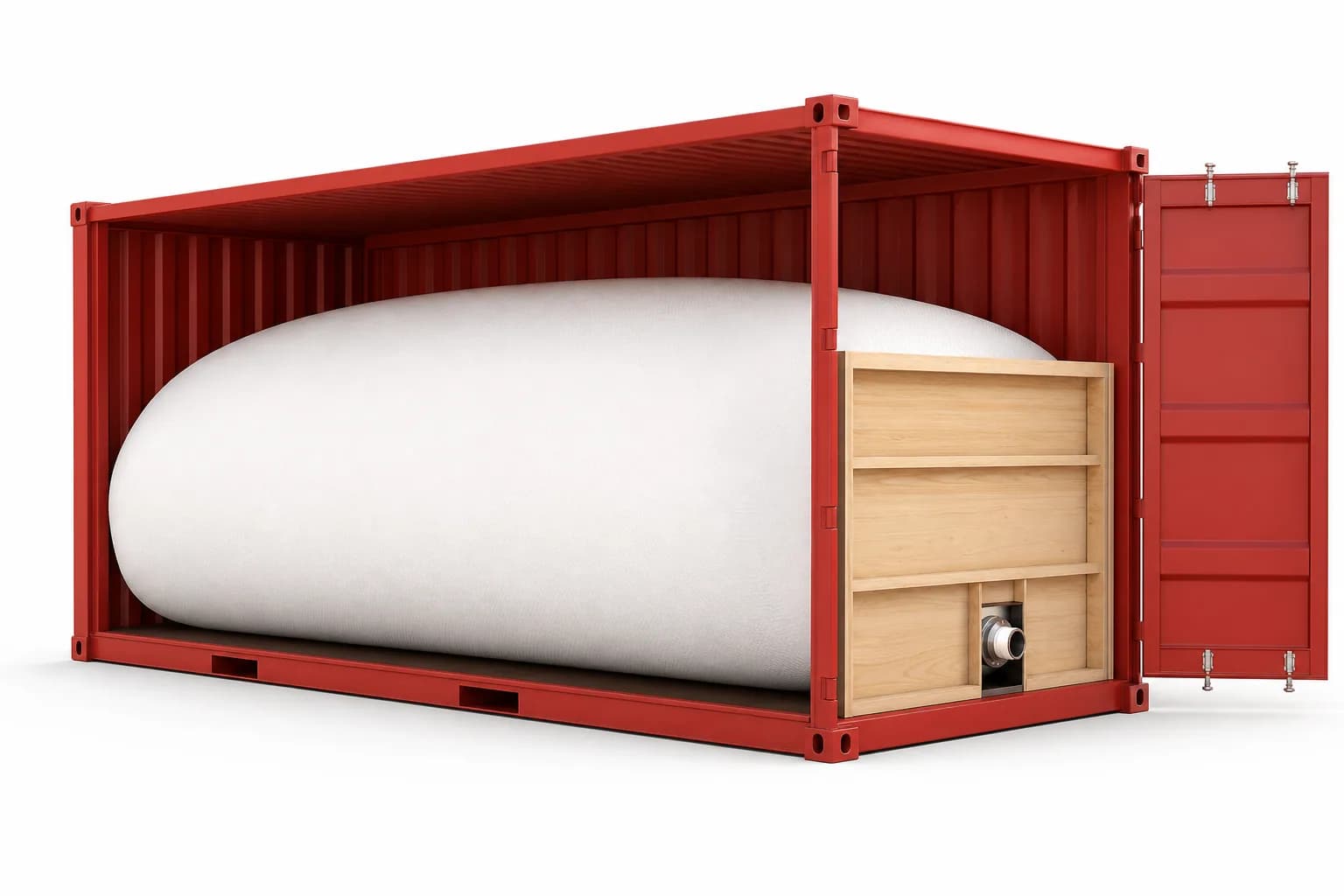

Convert a standard 20ft container into a liquid transport system

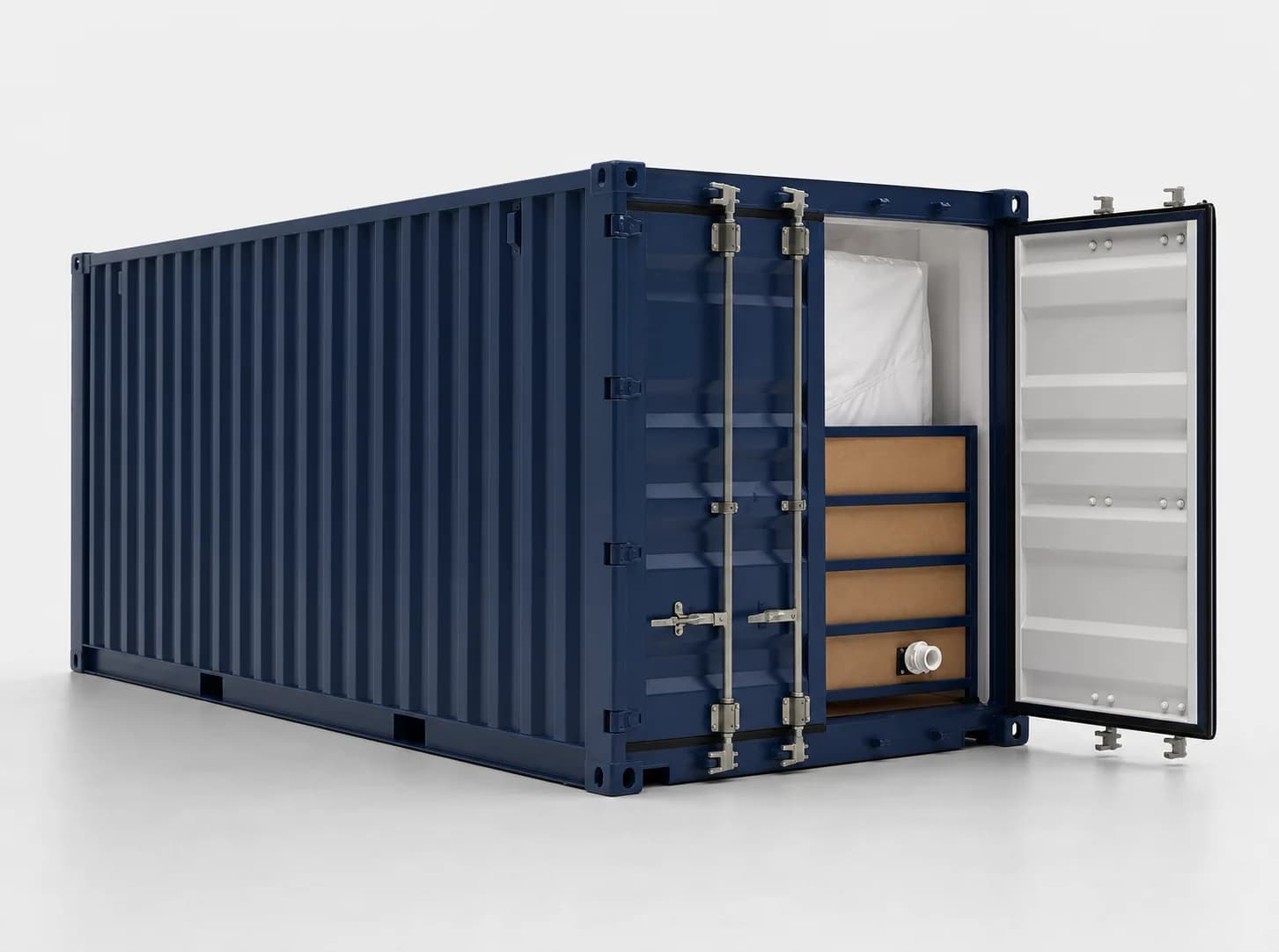

The Flexitank, valve, bulkhead, liner, restraint components and container work as one system. Selection begins with the cargo and route—not capacity alone.
Configuration options
Valve and accessory configuration, heating pad, thermal liner, oxygen-barrier layer and venting may be evaluated by project.

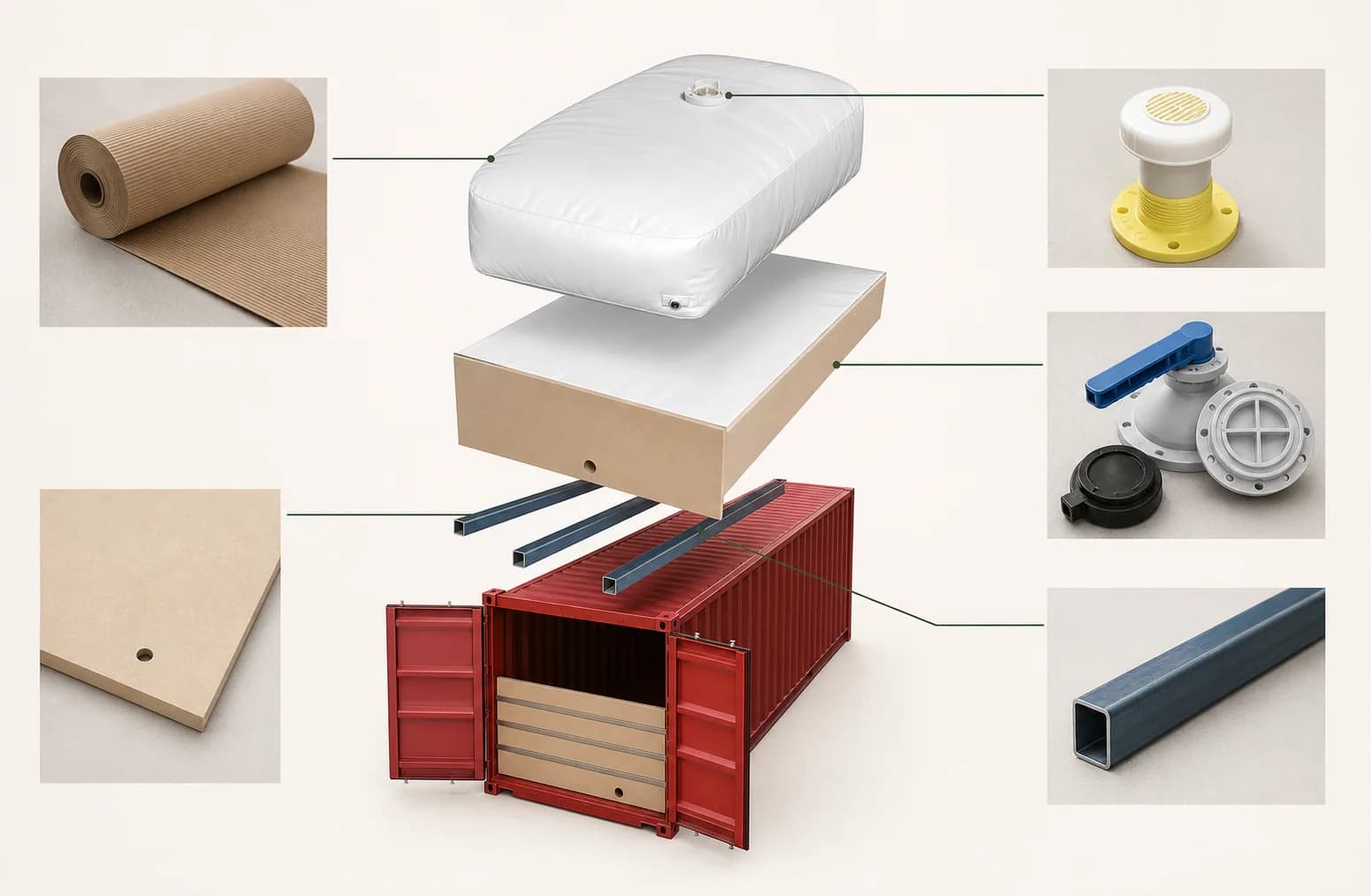

System architecture
Every component works as part of one transport system

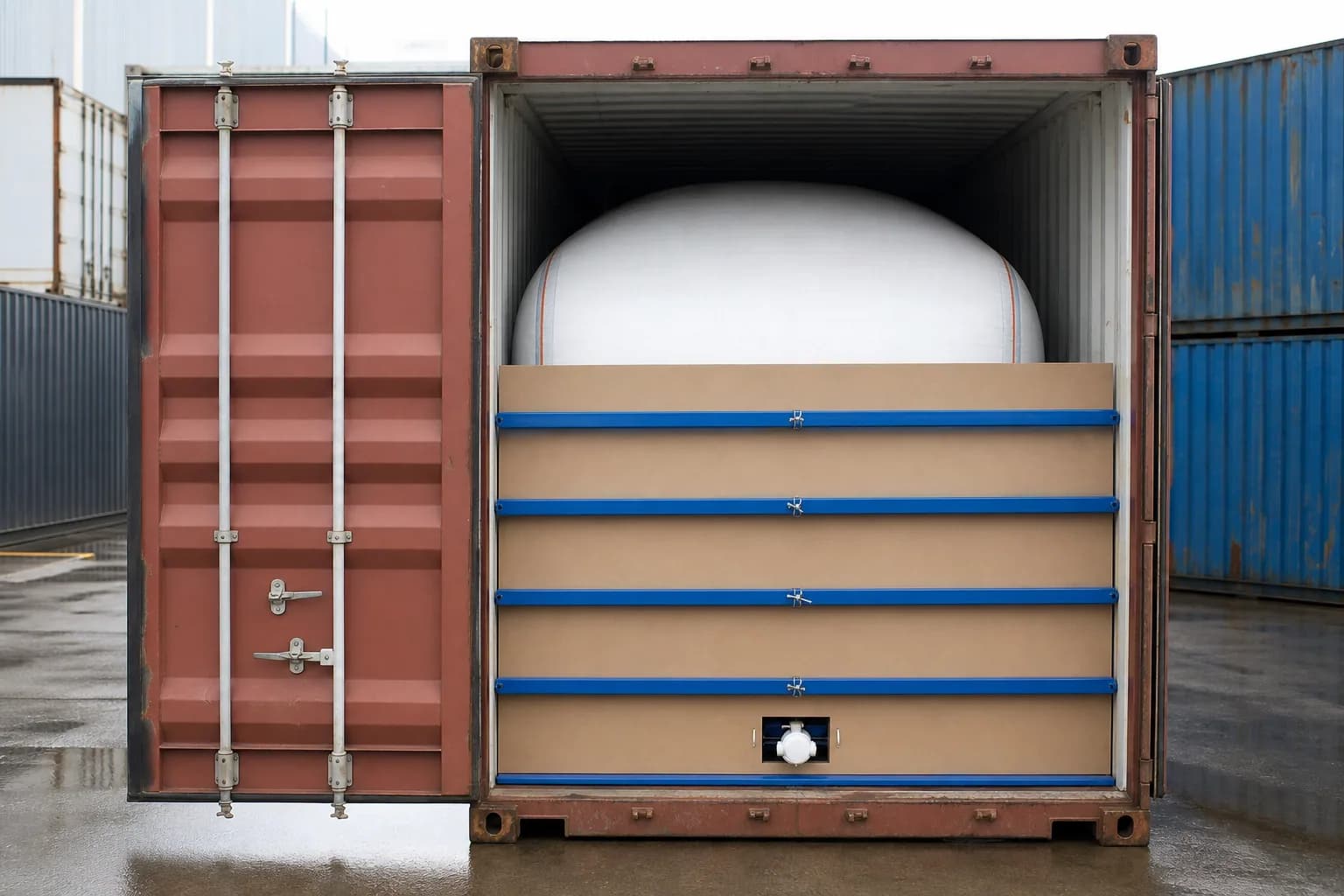

The liner, valves, protection materials, bulkhead, restraint bars and container must be reviewed together for the cargo and route.
Technical reference
Flexitank specifications
Final capacity and construction depend on cargo density, total mass, compatibility, route and carrier approval.
- Commercial capacity range
- 16,000–24,000 L
- Container
- 20ft GP dry container, ISO code 22G1
- Construction
- 3–6 layers; laminated PP woven outer layer with inner PE films
- Inner PE film reference
- 125–220 μm, configuration subject to order review
- Valve options
- 3-inch PP ball or butterfly valve; connection configuration on request
- Cargo boundary
- Compatible non-hazardous liquids only

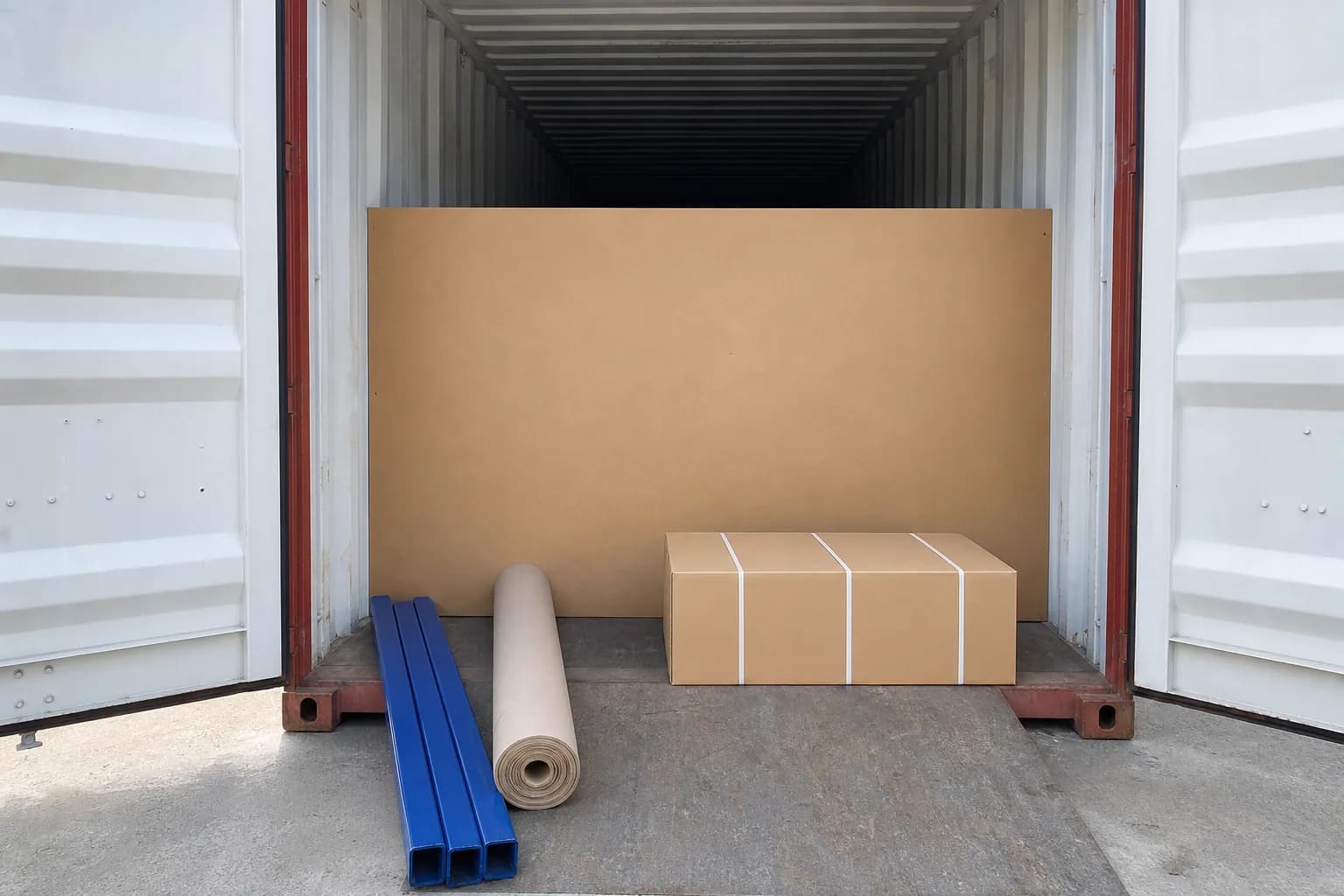

Installation context

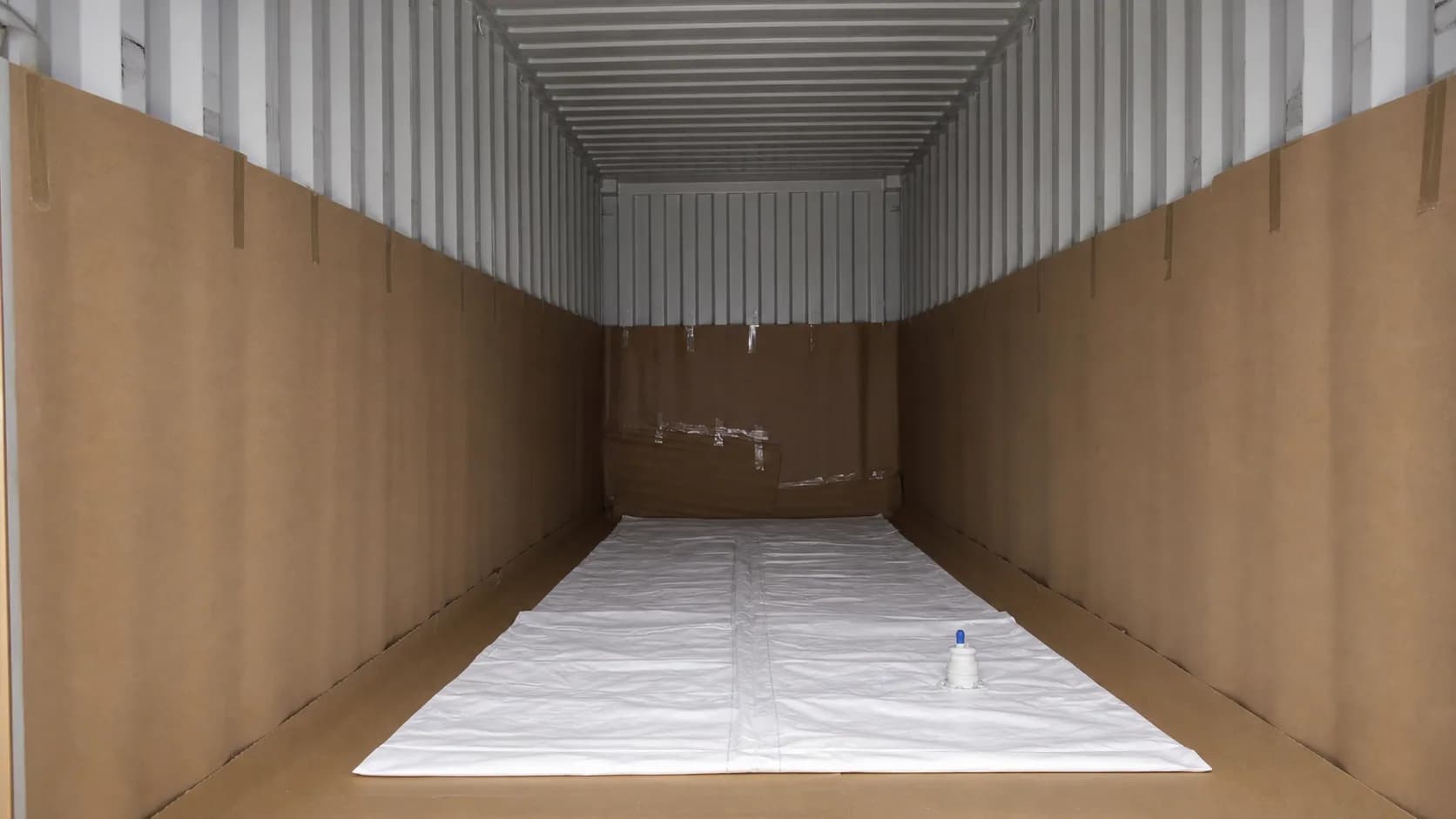

Container condition is part of packaging safety
The dry container must be clean, dry, structurally suitable and free from sharp edges or protrusions. The approved installation, filling and discharge procedure must be followed for the selected Flexitank system.

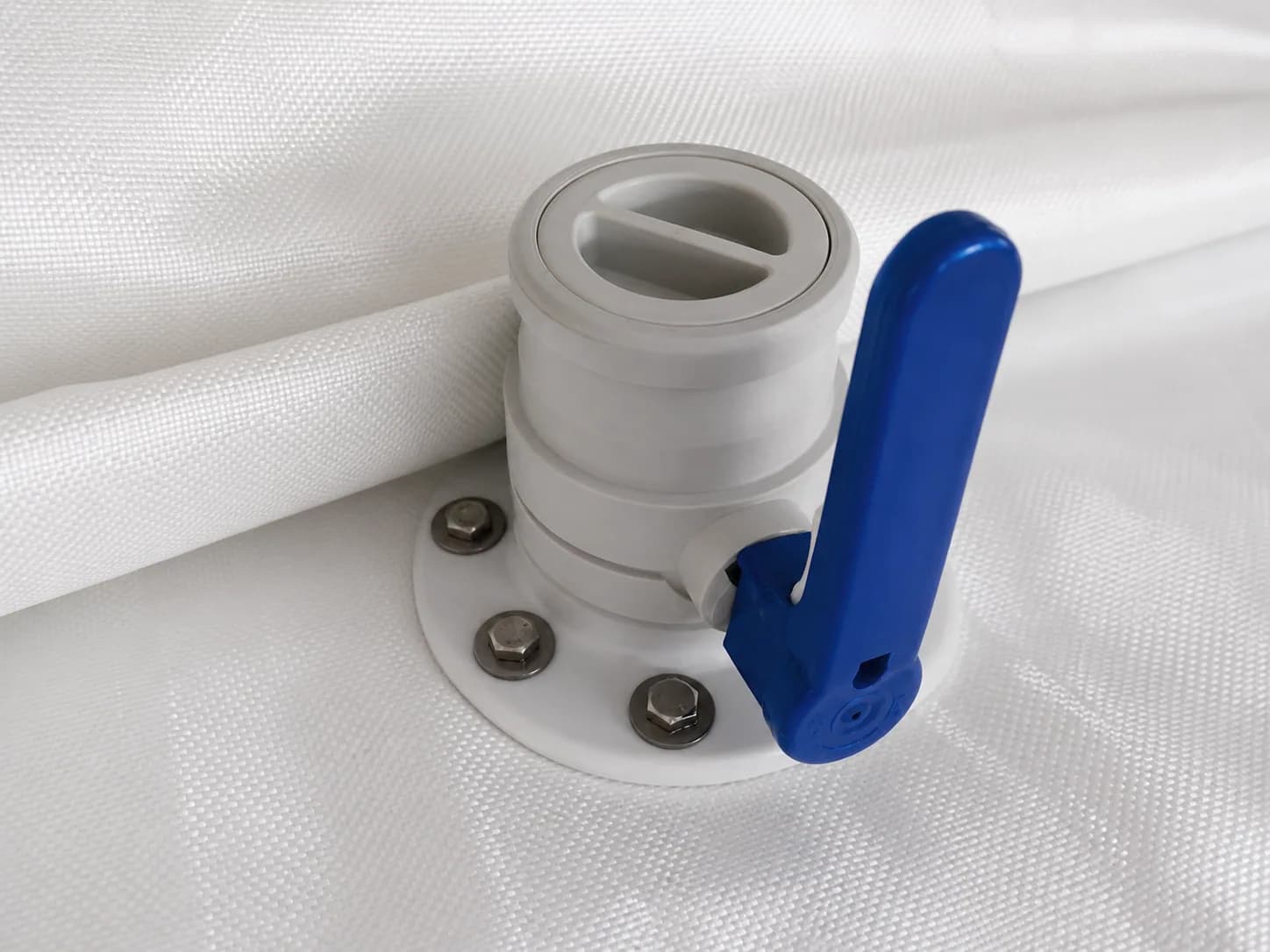

Valve configuration
3-inch PP ball or butterfly valves are available as reference options. Confirm connections against the loading and discharge equipment.

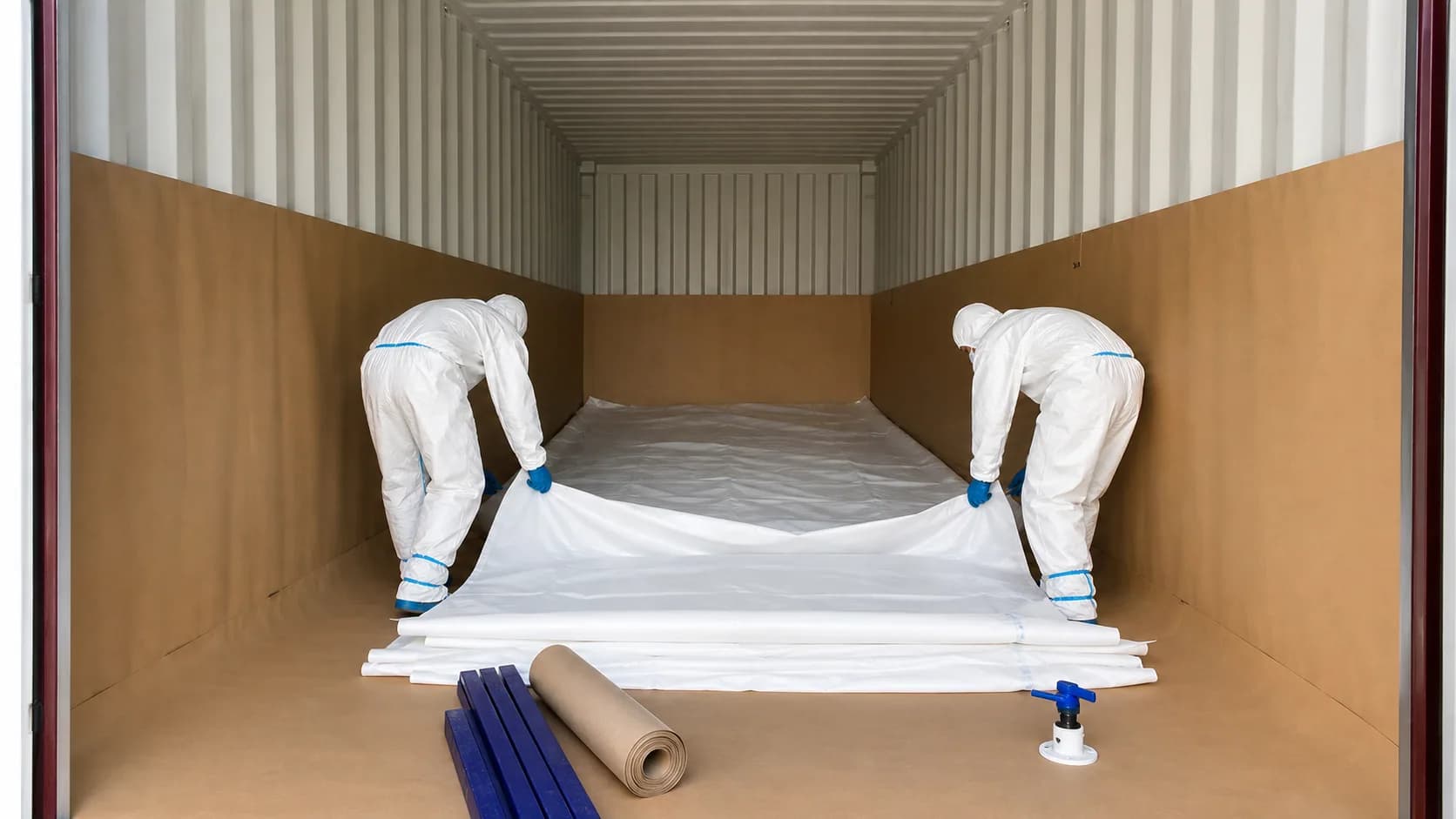

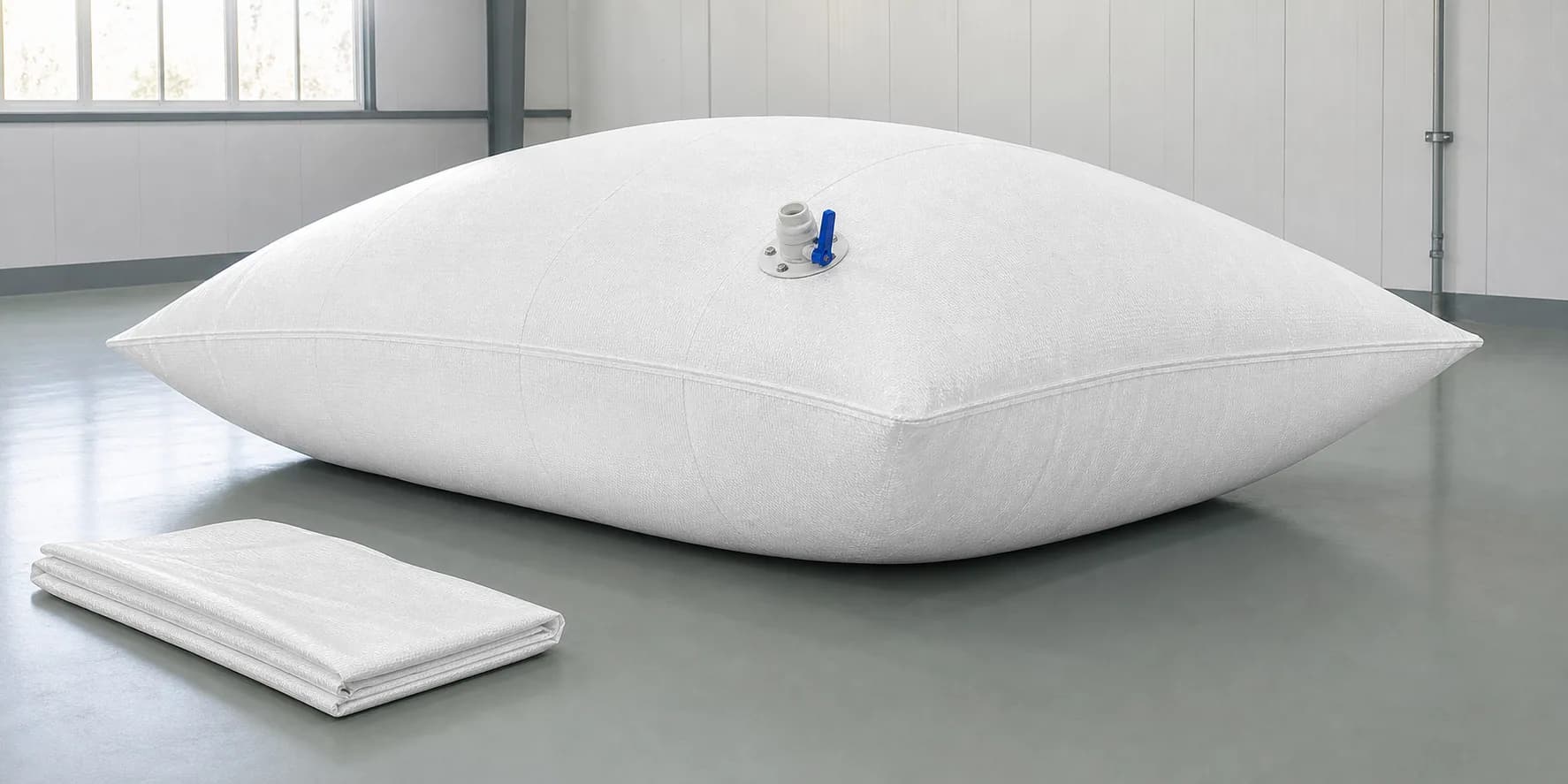

Installation and product views

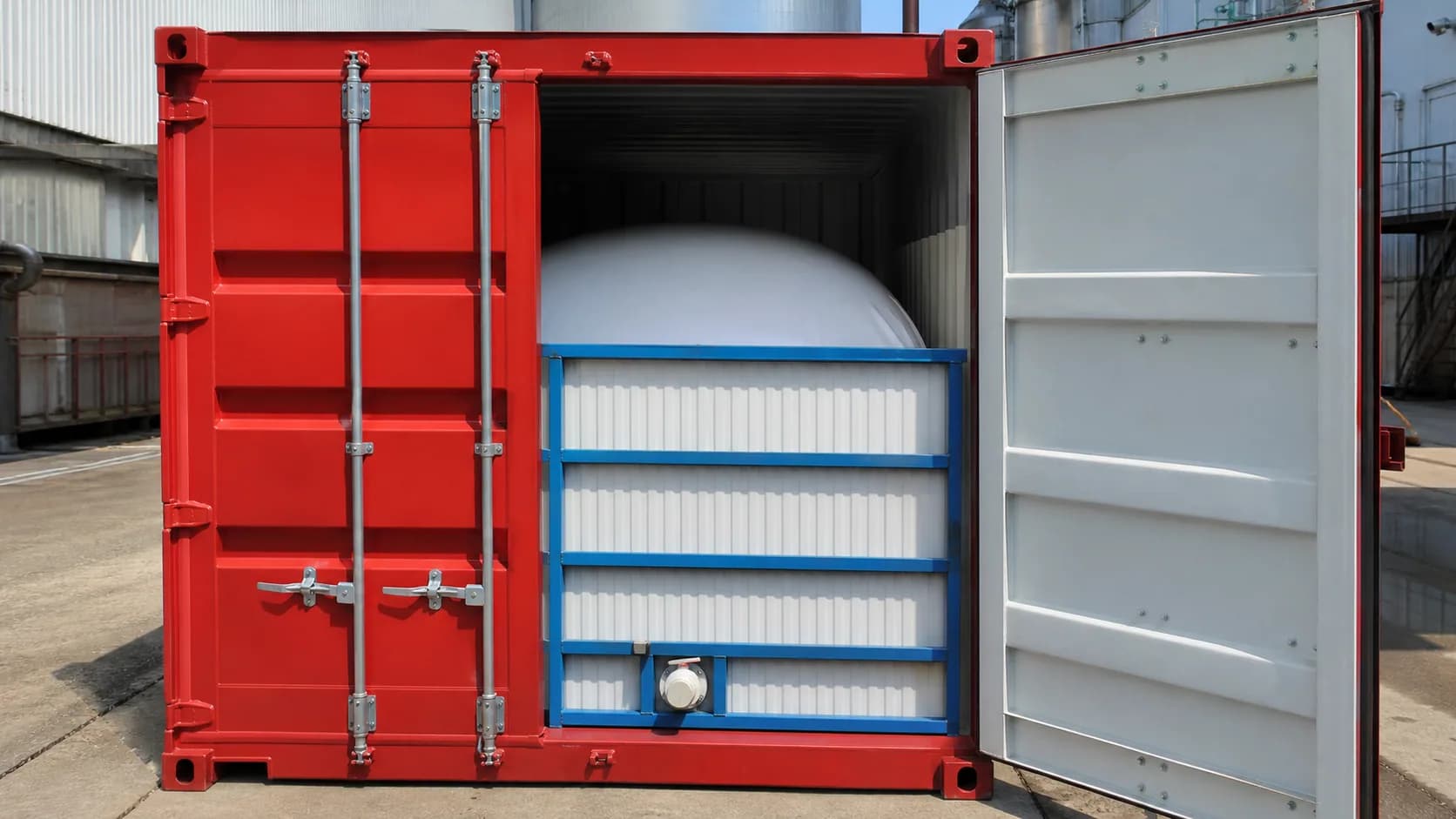

From container preparation to the filled system
Representative visuals help align the installation method before project approval.
Cargo acceptance
Compatibility review is mandatory
Final acceptance is based on the cargo name, SDS, density, viscosity, loading temperature, planned volume and mass, route, container and carrier requirements.
This Flexitank solution is not dangerous-goods packaging.
Send cargo informationTechnical answers
Frequently asked questions
What liquids can be transported in an Essencia Flexitank solution?
Flexitanks are intended only for compatible, non-hazardous liquids. Typical candidates include edible oils, syrups, molasses, juices, wine, glycerin and selected non-regulated industrial liquids. Final acceptance requires cargo and route review.
Is 24,000 L suitable for every cargo?
No. Usable capacity depends on cargo density, planned cargo mass, container rating, route, carrier requirements, temperature and the approved loading range of the selected Flexitank design.
What information is required for a Flexitank review?
Provide the cargo name, SDS, density, viscosity, loading temperature, planned volume and mass, origin, destination, transport mode and any food-contact, heating, insulation or oxygen-barrier requirements.
Can a Flexitank be used for dangerous goods?
No. The solution presented here is not dangerous-goods packaging and must not be used for regulated hazardous cargo.
Bulk liquid project review
Send the SDS before selecting capacity.
We will review the cargo, route and configuration requirements before recommending a Flexitank solution.
Request Flexitank review
